Specification
Resistance Value : 180 Ohm
Power Rating : 1/8W
Resistance Tolerance : ±5%

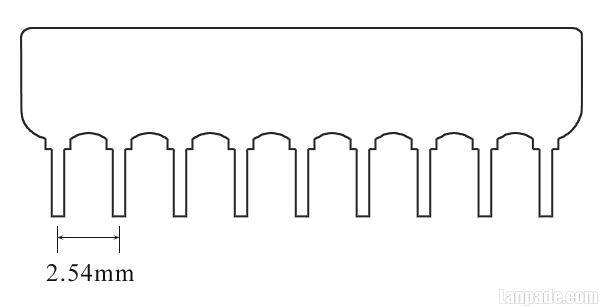

Pin Distance : 2.54mm
Pin Distance

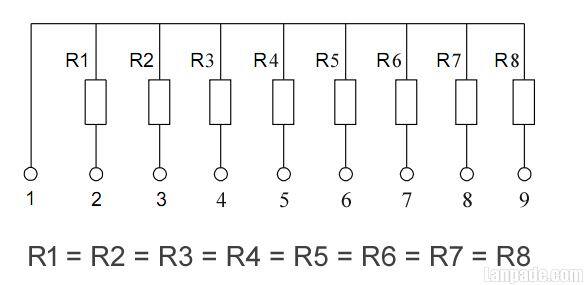

Equivalent Circuit
Network resistors are an essential component in electronic circuits, providing the necessary resistance to control the flow of current. These resistors are available in various power ratings, with one of the commonly used ratings being 1/8W.
The power rating of a network resistor indicates the amount of power it can dissipate without getting damaged. In the case of a 1/8W power rating, it means that the resistor can safely handle up to 1/8 watt of power. This power rating is suitable for low-power applications and is commonly found in a wide range of electronic devices.
When selecting a network resistor with a 1/8W power rating, it is important to ensure that it meets the requirements of your circuit. The power rating of the resistor should be chosen based on the maximum power that will be dissipated across it. If the power exceeds the rating of the resistor, it could lead to overheating and potentially cause damage to the resistor or other components in the circuit.
To calculate the power dissipated across a network resistor, you can use Ohm's Law. Ohm's Law states that the power (P) dissipated in a resistor is equal to the square of the current (I) flowing through it, multiplied by the resistance (R) of the resistor. The formula to calculate power is given as P = I^2 * R.
For example, let's say we have a network resistor with a resistance of 100 ohms and a current of 10 mA flowing through it. Using Ohm's Law, we can calculate the power dissipated as P = (0.01 A)^2 * 100 Ω = 0.01 W, which is well within the 1/8W power rating of the resistor.
Network Resistor A151J 150 A181J 180 A201J 200 A221J 220 A271J 270 A301J 300 A331J 330 A361J 360 A431J 430 Ohm
