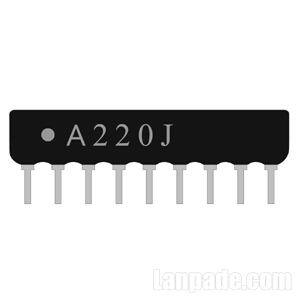

A220J 9-Pin 22 Ohm 22R A09-220JP A-Type 9A 9P Array Thick Film Network Resistor
Specification
Resistance Value : 22 Ohm
Power Rating : 1/8W
Resistance Tolerance : ±5%
Pin Distance : 2.54mm

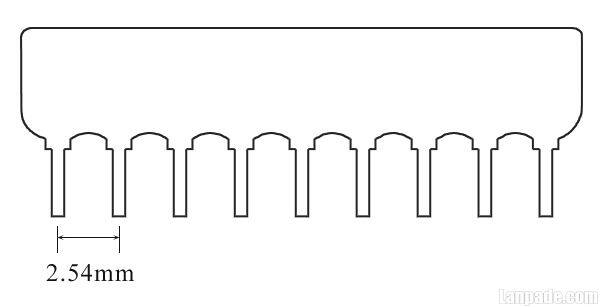

Pin Distance

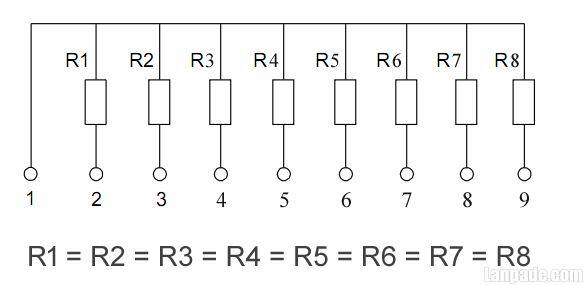

Equivalent Circuit
Network resistors are an essential component in electronic circuits that help regulate the flow of electricity. In this article, we will explore the concept of network resistors and specifically focus on resistors with a resistance value of 22 Ohm.
A resistor is a passive two-terminal electrical component that limits or regulates the flow of electric current in a circuit. It does so by providing resistance to the current passing through it. Network resistors, also known as resistor networks, are a combination of two or more resistors connected together in a specific configuration.
The resistance value of a resistor is measured in Ohms (Ω). The resistance value determines the amount of current that can flow through the circuit. In the case of network resistors with a resistance value of 22 Ohm, they limit the current flow to 22 Ohms.
Resistors with a resistance value of 22 Ohm are commonly used in various electronic applications. They find applications in audio circuits, power supplies, amplifiers, and many other electronic devices. The specific resistance value of 22 Ohm is chosen based on the requirements of the circuit and the desired current flow.
Network Resistor A100J 10 A220J 22 A330J 33 A470J 47 A510J 51 A560J 56 A820J 82 A101J 100 A121J 120 Ohm
