A103J 9-Pin 10K Ohm A09-103JP A-Type 9A 9P Array Thick Film Network Resistor

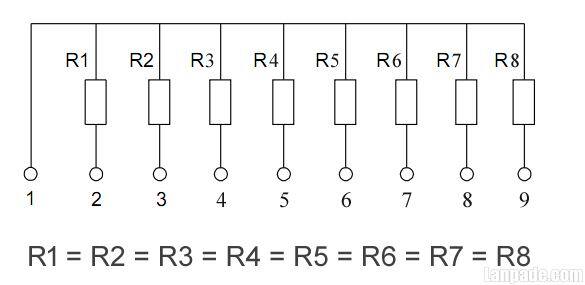

As an electronics enthusiast, you may have come across the term "network resistor" and wondered what it means. A network resistor is simply a group of resistors connected together in a specific configuration. The purpose of this configuration is to achieve a specific resistance value with precision and accuracy.

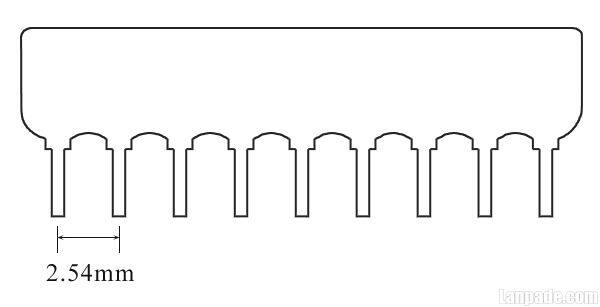

One type of network resistor is the 9-pin distance 2.54mm variant. This type of resistor is commonly used in electronic circuits where precision and accuracy are crucial. The pins on this resistor are spaced 2.54mm apart, which is a standard spacing for through-hole components.

The 9-pin network resistor is designed to be used in a variety of applications, including audio equipment, power supplies, and digital circuits. It is important to note that the resistance value of this type of resistor can be customized to suit specific applications. This means that the resistance value can be adjusted by changing the number and values of the individual resistors that make up the network.

One advantage of using a network resistor over a single resistor is that it can provide a more consistent and stable resistance value. This is because the individual resistors in a network are typically matched to each other to ensure that they have the same resistance value. This helps to reduce errors and improves the overall accuracy of the circuit.

Network Resistor A682J 6.8K A103J 10K A153J 15K A203J 20K A223J 22K A253J 25K A273J 27K A303J 30K A333J 33K A473J 47K Ohm
